FF109-FRSC

1 Hour Fire Rated Speaker Cover

Fire & Noise Barrier for in-ceiling loudspeakers up to 10″.

Tenmat FF109 Fire Rated Speaker Cover

Key Benefits:

A flat, round grey disk resembling an in-ceiling speaker cover sits next to a tall, rough cylinder made of curly black shavings.

In case of a fire the intumescent material
expands, sealing the ceiling penetration and preventing the spread of fire

Product Details

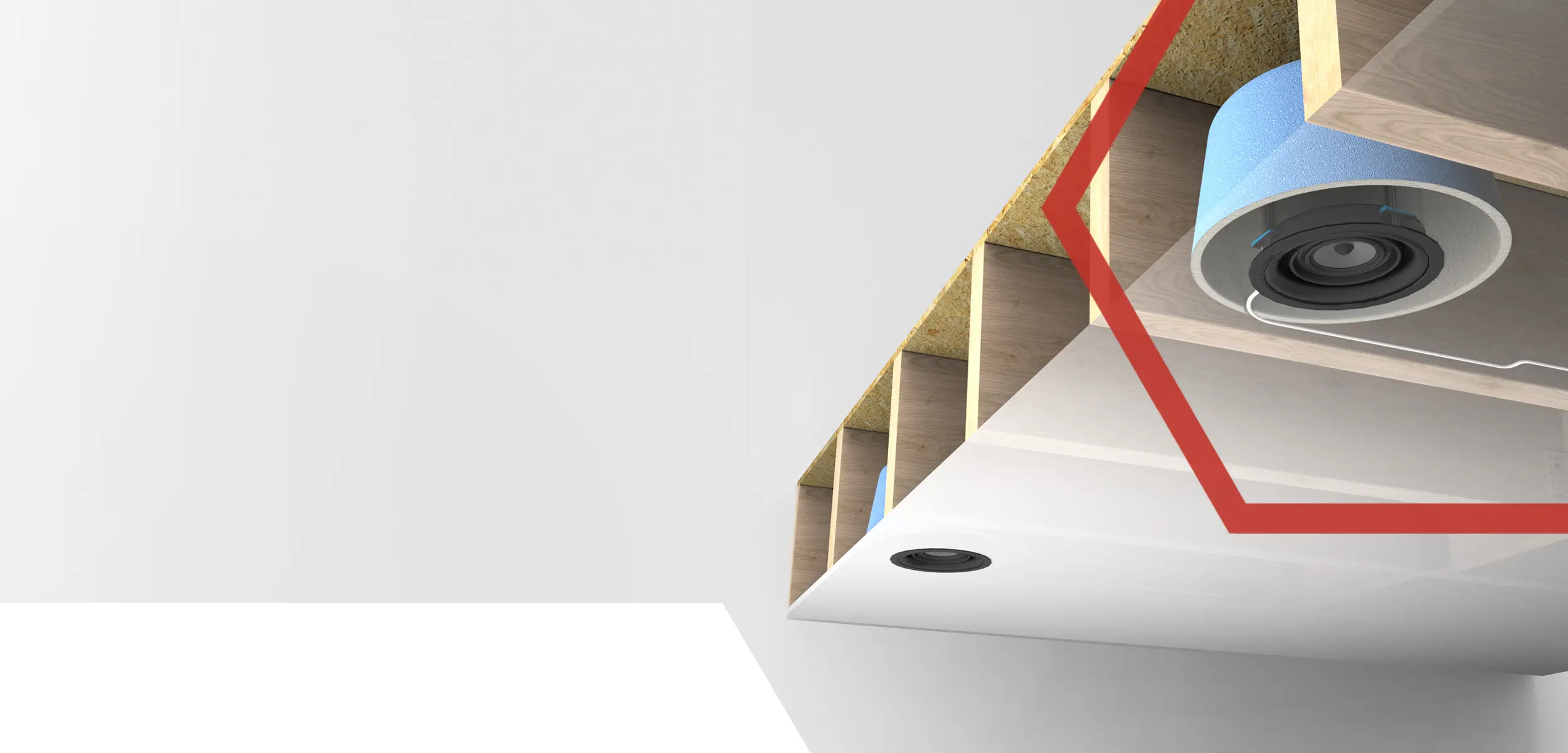

The FF109-FRSC I Hour Fire Rated Speaker Cover is a dome-shaped intumescent cover which has been specifically designed to help maintain the integrity of fire-resistance rated ceilings for 60 minutes when penetrated by in-ceiling loudspeakers.

The unique design gives architects, sound professionals and installers more freedom in speaker selection as the covers are suited to a wide range of speaker sizes up to 10″.

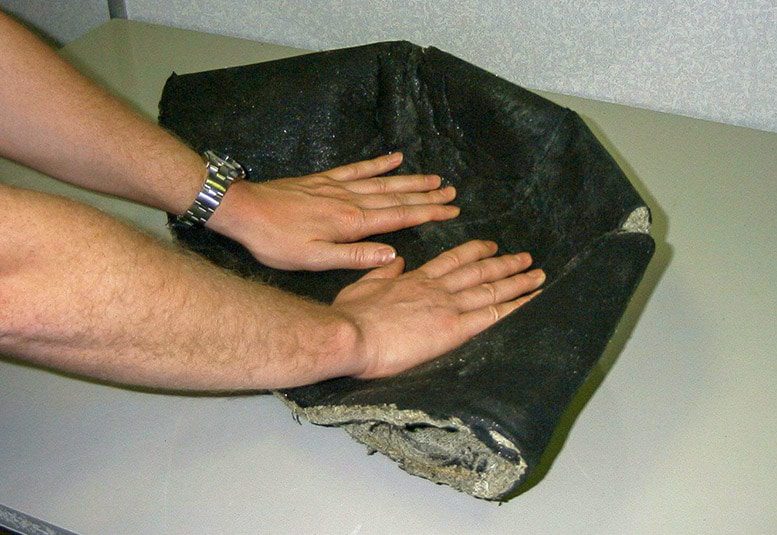

The flexible and lightweight nature of the covers makes installation quick and easy, reduces the stress put on the ceiling and significantly reduces labor costs compared to standard dry-walled box constructions.

The sound absorbing properties of the proprietary intumescent material enhance the acoustic performance of the structure for a crisper and clearer sound and serve as a noise barrier, limiting the sound transmission between floors.

The high expansion and insulating properties of the cover ensures that both, flame spread and heat transmission, are stopped for 60 minutes.

Inside Height 8″

Diameter 13″

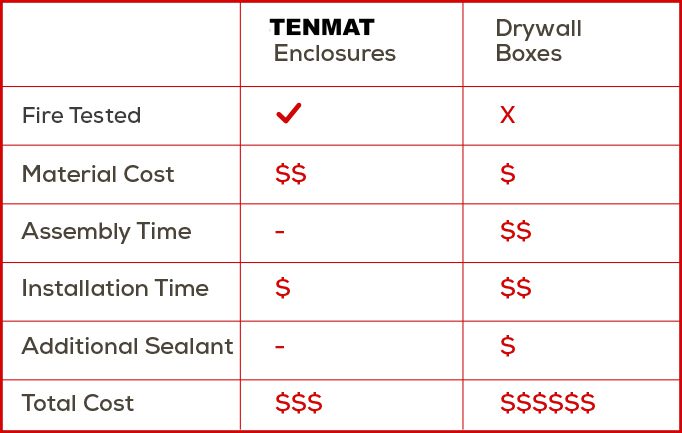

Comparison chart: TENMAT Enclosures vs Drywall Boxes for in-ceiling speaker cover applications—evaluating fire test, cost, assembly, installation, and sealant.
