FF109-200

1 Hour Fire Rated LED Downlight Cover

Fire Rated LED downlight cover for retrofit applications.

ETL LISTED

GET A QUOTE
A single black cone-shaped incense piece sits on a white background, resembling the sleek design of recessed ceiling light covers.

Benefits of the FF109-200:

  • Only ETL Tested and Certified 1 Hour Fire Rated LED Downlight Solution for retrofit applications.
  • Easy Installation – can be fitted in seconds – no screws, drilling or additional sealant required.
  • Fits most 4” low profile LED downlight fixtures.
  • Significant Labor savings.
  • Lightweight (only 8 oz.).
  • Retrofitting capabilities - flexible material enables the cover to be fitted around obstructions or retro-fitted.
  • Vent hole on top of the cover reduces the risk of overheating of the light in normal use.
  • In a fire, the intumescent material expands 5 times of its original thickness, closing the vent hole and preventing flame spread.
  • Easy to remove and re-install for fixture maintenance.
  • Enhances the acoustic protection of the ceiling.
  • Reduces heat loss through the fixture.
  • Maintenance free 1-Hour Fire Rated LED Downlight cover.
  • 60-minute protection.
A black fire sprinkler head guard is installed under wooden floor joists above visible flames, near recessed ceiling light covers for added protection.
A black cylindrical light fixture with recessed ceiling light covers is mounted on a white ceiling.

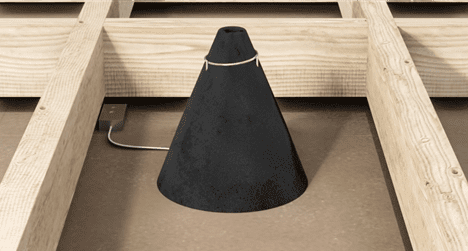

A black conical device, similar to recessed ceiling light covers, sits on the floor between wooden beams, with a cable attached to it.
ETL Listed Intertek certification logo in black and white, ideal for products like recessed ceiling light covers.

Product Details

The FF109-200 1 Hour Fire Rated LED Downlight Cover is a cone-shaped intumescent enclosure which has been specifically designed to help maintain the integrity of openings of up to 4” diameter in fire rated ceilings when penetrated by modern low profile LED downlight fixtures.

The ultra-flexible nature of the material allows the 1 hour fire-rated LED downlight cove to get rolled up for easy retrofit, remodel or new construction installation from below the ceiling to protect modern low profile LED light fixture and provide a 60 minute flame, smoke and heat barrier.

The FF109-200 Low-Profile 1 hour fire-rated LED downlight cover is suitable for most low profile LED lights, ultra-thin wafer LED recessed lights, LED recessed retrofit downlights, LED recessed ceiling lights and recessed spotlight remodel kits installed in floor/ceiling or roof/ceiling assemblies (attic spaces).

The unique design gives the architect, specifier and installer more freedom in fixture selection as the covers are suited to a wide range of LED downlights.

The flexible and lightweight nature of the fire rated light cover makes installation quick and easy, reduces the stress put on the ceiling and significantly reduces labor costs compared to standard dry-walled box constructions. The high expansion and insulating properties of the cover ensures that both, flame spread and heat transmission, are stopped for 60 minutes.

Inside Height 7″

Diameter 7-7/8″

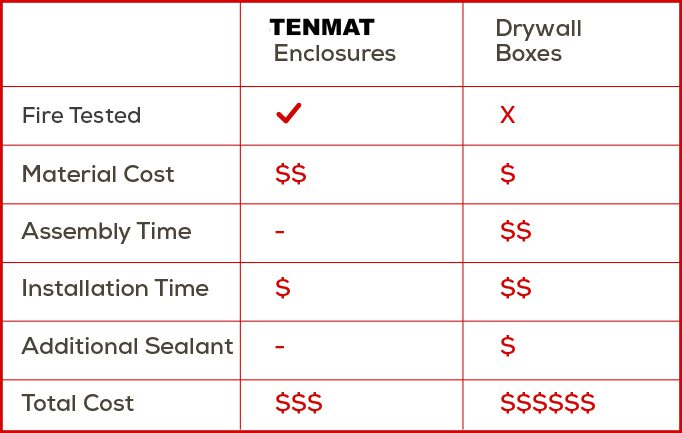

Comparison chart of TENMAT Enclosures and Drywall Boxes for fire testing, costs, installation factors, and compatibility with recessed ceiling light covers.
