FF130 - 2x4

Fire Rated Troffer Cover

the ONLY fully UL fire tested solution to provide a 1 Hour Fire Rating for fire rated ceilings when penetrated by 2′ by 4′ fluorescent fixtures

UL CLASSIFIED

A rectangular block of white styrofoam, resembling an FF130-2x4 Fire Rated Troffer Cover by Tenmat USA, set against a plain white background.

Key Benefits:

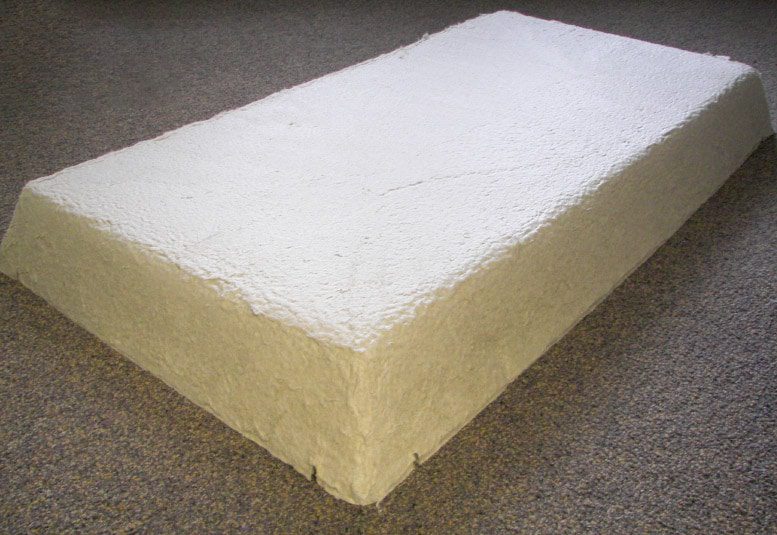

A rectangular block of packed pulp paper, resembling the FF130-2x4 Fire Rated Troffer Cover by Tenmat USA, rests on a carpeted floor.
A rectangular block of white styrofoam, resembling an FF130-2x4 Fire Rated Troffer Cover by Tenmat USA, set against a plain white background.

Product Details

The FF130-2’x4’ Troffer Protection Cover is the ONLY fully UL fire tested solution to provide a 1 Hour Fire Rating for fire rated ceilings when penetrated by 2′ by 4′ fluorescent fixtures. It is a pre-formed flexible cover and does not require any assembly, making it the smart choice for new construction, as well as remodel projects.

The unique design gives the architect, specifier and installer more freedom in fixture selection as the covers are suited to a wide range of these fixtures.

The flexible and lightweight nature of the covers makes installation quick and easy, reduces the stress put on the ceiling and significantly reduces labor costs compared to standard dry-walled box constructions. The FF130 Cover can be folded to ease installation in restricted spaces.

The insulating properties of the cover ensures that both, flame spread and heat transmission, are stopped for 60 minutes.

Inside Height 5″

Length 4′

Width 2′

Comparison chart of TENMAT Enclosures vs. Drywall Boxes for costs, UL firestop systems, UL testing, and installation factors.
