FF109-350

Fire Rated Light Cover

The unique design gives the architect, specifier and installer more freedom in fixture selection as the FF109-350 covers are perfect for a wide range of recessed fixtures.

ETL LISTED

GET A QUOTE

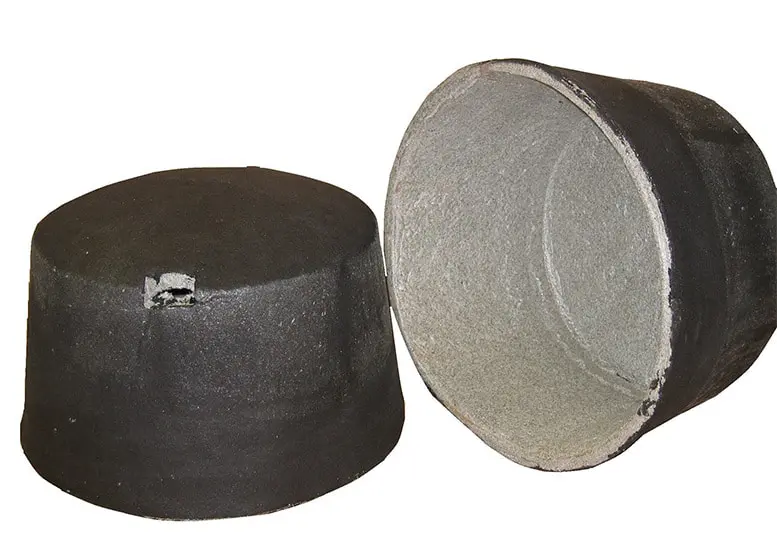

Two black crucibles, one upright and one lying on its side, display their inner and outer surfaces alongside high hat covers.

Key Benefits:

  • Easy Installation – The FF109-350 can be fitted in seconds – no screws, drilling or additional sealant required.
  • Versatility. With its dimensions, the FF109-350 fits most popular oversized recessed fixtures.
  • Significant Labor savings.
  • Lightweight (approx. 2.5 lbs).
  • Flexible material enables the cover to be fitted around obstructions or retro-fitted.
  • Two vent holes in the cover reduce the risk of overheating of the light in normal use.
  • Easy to remove and re-install for fixture maintenance.
  • Reduces heat loss through the fixture.
  • Maintenance free.
  • 60-minute protection.

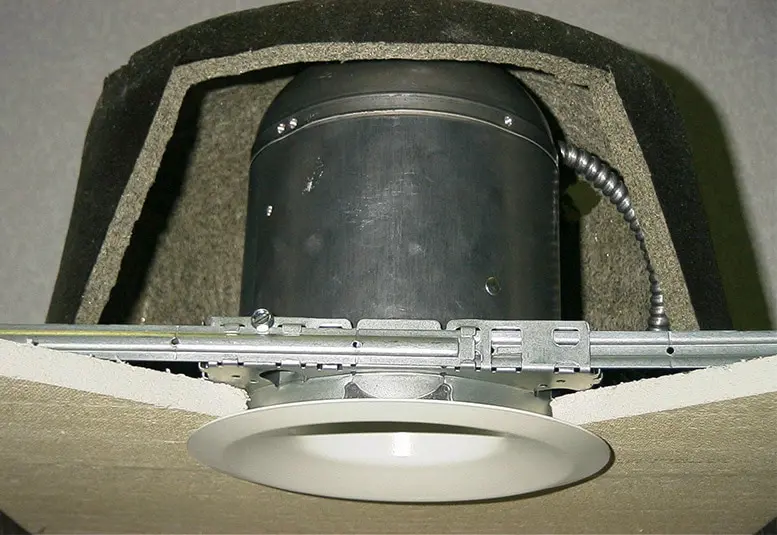

A recessed ceiling light fixture with housing partially installed in a cutout section of drywall, compatible with high hat covers for added protection and energy efficiency.

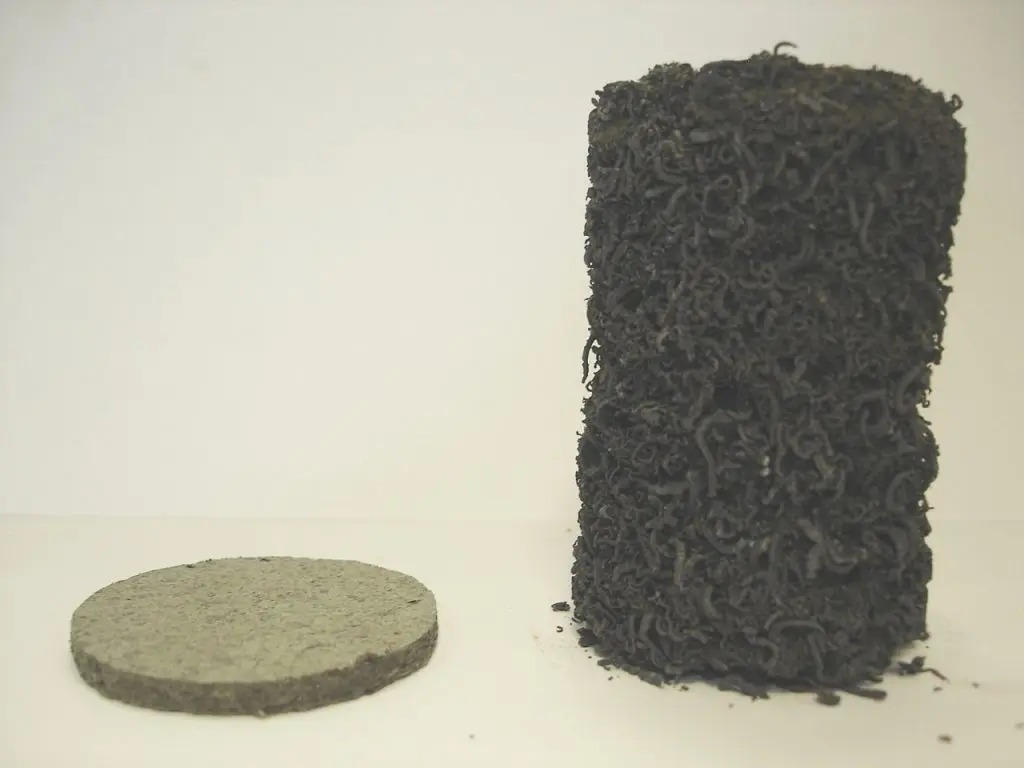

A round flat disc, resembling high hat covers, sits next to a tall, curly, cylindrical mass on a white background.

In a fire, the intumescent material expands 5 times of its original thickness, closing the vent holes and preventing flame spread.

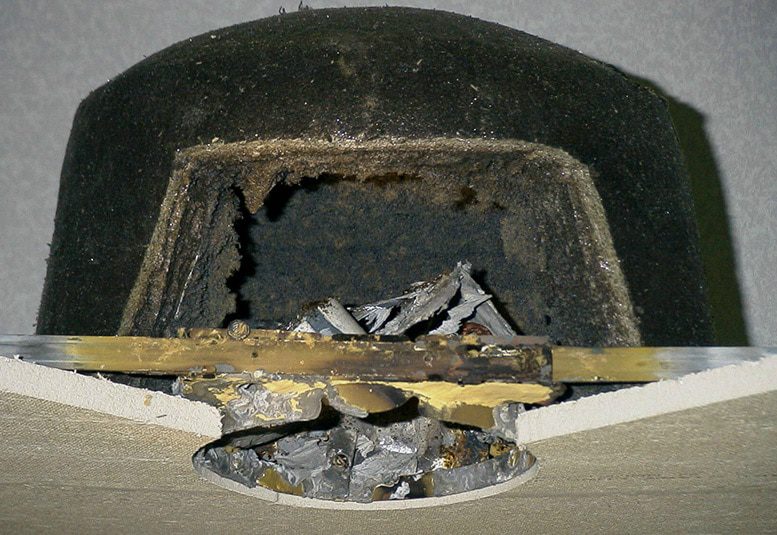

A helmet with a large hole and damaged metal inside, possibly where high hat covers once offered protection, shows signs of severe impact or penetration.
ETL Listed certification logo above the word “Intertek” in black text, indicating compliance for fire rated ceiling applications, on a transparent background.

FF109-350 Product Details

The FF109-350 1 Hour fire rated light cover is a dome-shaped intumescent cover which has been designed to help maintain the integrity of fire rated ceilings when penetrated by recessed fixtures.

The unique design gives the architect, specifier and installer more freedom in fixture selection as the covers are suited to a wide range of recessed fixtures.

The flexible and lightweight nature of the fire rated light cover makes installation quick and easy, reduces the stress on the ceiling and significantly reduces labor costs compared to standard dry-walled box constructions. The high expansion and insulating properties of the cover ensures that both, flame spread and heat transmission, are stopped for 60 minutes.

Inside Height 11″

Diameter 15″

Comparison chart: TENMAT Enclosures vs Drywall Boxes for in-ceiling speaker cover applications—evaluating fire test, cost, assembly, installation, and sealant.
